Photovoltaic + energy storage

Photovoltaic energy storage system refers to a device that converts solar energy into electrical energy through solar panels and stores the electrical energy using energy storage systems (such as batteries). It combines photovoltaic power generation technology and energy storage technology, and can generate and store electrical energy when solar energy is sufficient, and release electrical energy when solar energy is insufficient, thus achieving efficient energy utilization.

  • Product Introduction
  • message

光伏英文1

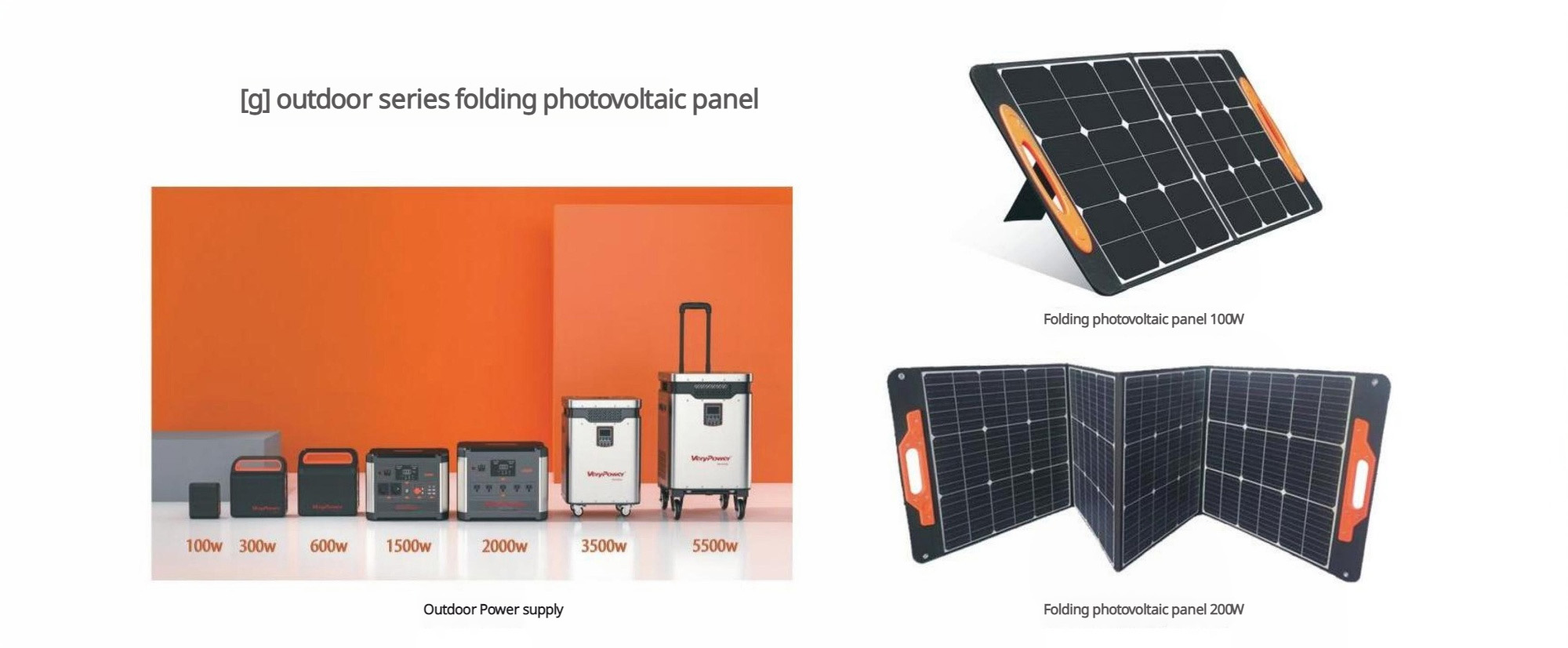

Outdoor Power Supply
Power & Capacity300W/311Wh600W/600Wh1000W/1048Wh1500W/1536Wh2000W/1843Wh3500W/4000Wh
Cell TypeTernary lithiumTernary lithiumLifePO4 Lithium Iron PhosphateLiFePO4 Lithium Iron PhosphateLiFePO4 Lithium Iron PhosphateLiFePO4 Lithium Iron Phosphate
Output InterfaceCustomization is acceptable (European/Japanese/Australian/American)Customization is acceptable (European/Japanese/Australian/American) with bidirectional inverter
Dimensions (mm)257*264*90274.5*290.26*130.34394*213*287370*250*300370*250*300460*360*450
Weight(kg)3.8616202350

The power and capacity are expandable and can be customized. Please contact sales for details.


Folding Photovoltaic Panel 100W Product Specifications
Fabric and ColorPolyester 900D, black
Handle colorCustomized according to customer requirements
BracketDouble bracket with Velcro
Expanded size1228*536mm
Folded size608*536mm
net weightAbout 4KGS
Inner packing size550*65*630mm
Outer packaging size575*155*655mm
Product WiringAWG16 wire, length 2 meters, connector is DC5521 male (customizable
OutputDC direct output with 36W USB controller, one USB-A,
Another USB-typeC, each port has an independent 18W output power,
They are 5V/3.5A, 9V/2A, 12V/1.5A
Solar Wafer TypeSunpower battery
Solar wafer dimensions166*166
Rated power(Mp)100W
Power Error±5%
Rated voltage(Vmp)20V
Rated current (Imp)5A
Open circuit voltage (Voc)25V
Short circuit current (Isc)5.5A
Product operating temperature40℃-+85℃
Factory warranty2 years


Folding Photovoltaic Panel 200W Product Specifications
Fabric and ColorPolyester 900D, black
Handle colorCustomized according to customer requirements
Bracket4 brackets with Velcro
Expanded size536*2335mm
Folded size536*604mm
net weightAbout 8KGS
Inner packing size582*70*667mm
Outer packaging size602*160*692mm
Packing quantity2300Pcs/40HQ
Product WiringLength 3 meters, connector is Anderson/MC4 (customizable)
OutputDC direct output with 36W USB controller, one USB-A,
Another USB-type C, each port has an independent 18W output power,
They are 5V/3.5A, 9V/2A, 12V/1.5A
Solar Wafer TypeDomestic monocrystalline cell
Solar wafer dimensions166*166
Rated power(Mp)200W
Power Error±5%
Rated voltage(Vmp)20V
Rated current (Imp)10A
Open circuit voltage (Voc)25V
Short circuit current (Isc)11A
Product operating temperature -40℃-+85℃
Factory warranty2 years


光伏英文2

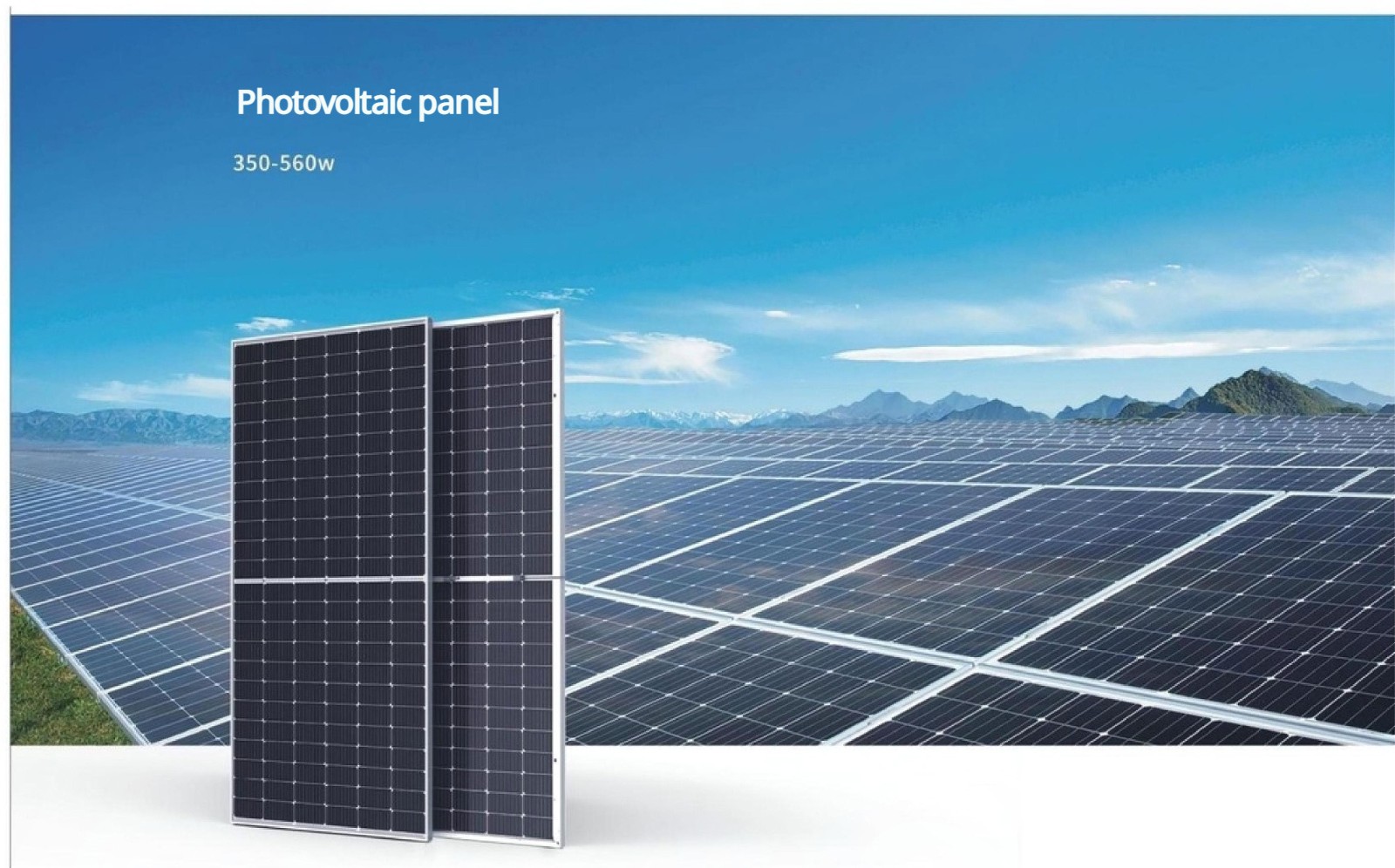

Product Parameters
modelVP144-525M/MB-8VP144-530M/MB-8VP144535M/MB-8VP144540M/MB-8VP144-545M/MB-8VP14550M/MB-8VP144-555M/MB-8

STCNIGHTSTCNIGHTSTCNIGHTSTCNIGHTSTCNIGHTSTCNIGHTSTCNIGHT
Maximum power (Pmax)525Wp397Wp530Wp401Wp535Wp405Wp540Wp408Wp545Wp412Wp550Wp416Wp555Wp420Wp
Maximum power point operating voltage (Vmp)41.15V38.36V41.31V38.57N41.47V38.78V41.64V38.99V41.80V39.20V41.96V39.43V42.13V39.64V
Maximum power point operating current (mp)12.76A10.35A12.83A10.39A12.90A10.43A12.97A10.47A13.04A10.51A13.11A10.55A13.18A10.59A
Open circuit voltage (Voc)49.30V46.05V49.37V46.18V49.45V46.31V49.60V46.43V49.75V46.55V49.82V46.68V49.90V46.90V
Short circuit current (Isc)13.72A10.97A13.75A11.01A13.79A11.05A13.86A11.09A13.93A11.13A13.96A11.17A14.00A11.21A
Module efficiency STC (%)20.30%20.50%20.70%20.90%21.10%21.30%21.50%


Mechanical parametersTemperature gradeWorking conditions
Cell TypeSingle crystal 182x91mmNMOT (rated module operating temperature)45℃(±2℃)Operating temperature-40~+85℃
Number of cells6x12x2PMAX Temperature Coefficient-0.37%/℃System maximum voltage1000/1500VDC(IEC)
size2279x1134x35mmVoc Temperature Coefficient-0.286%/℃Maximum fusing current25A
weight28.6 kgIsc temperature coefficient-0.057%/℃

Packaging glass3.2mm, high transmittance, AR coating, high light transmittance, low iron, tempered glassPackaging ConfigurationWarranty
frameOxidation-resistant aluminum alloy

Junction BoxIP68 RatedQuantity per box31pcs12 years product quality assurance
Output cableTUV1x4.0mm², length 300+/400-(mm), length can be customizedContainer loading quantity 40HQ620pcs25-year power guarantee

The above technical data is for reference only. Our company reserves the right to modify it at any time without prior notice.
