VERYPOWER®

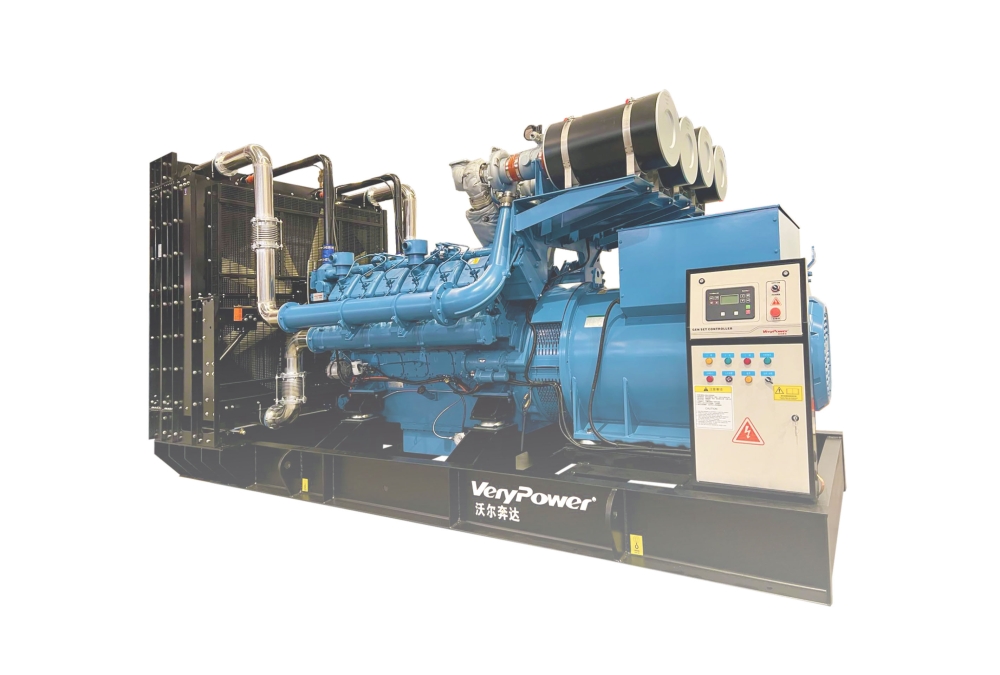

VP Series Diesel Generator Set
Power range: 16kW~3000kW
Good fuel economy
Adopting internationally advanced fuel control system, high-pressure fuel injection, full atomization, full combustion and low fuel consumption
Excellent appearance design
Perfect overall design of the generator set, compact structure, beautiful appearance, reduced floor space and effective use of space
Outstanding loading capacity
Excellent one-time loading capacity, high control accuracy, fast response speed, can meet the requirements of rapid startup
Low maintenance cost
Good parts versatility, high replaceability of spare parts, convenient maintenance, and low overall operating costs
Specifications
| Unit Model | Power kW (main) | Power kW (standby) | Rated current (A) | Engine Model | Unit size (L*W*H) | Unit weight (KG) | Box Model | Box size (L*W*H) | Weight (KG) |
| Low voltage unit - 400V 50HZ power factor 0.8 | |||||||||
| VP 20 | 16 | 18 | 29 | HW4MO30-D20 | 1500*600*1000 | 525 | VMP 202 | 2900*1100*1450 | 1375 |
| YP 30 | 24 | 27 | 43 | HW4MO45-D20 | 16504750*1150 | 560 | VMP 202 | 2900*1100*1450 | 1410 |
| VP 50 | 40 | 45 | 72 | HW4MO75-D20 | 1700*800*1200 | 680 | VMP 202 | 2900*1100*1450 | 1530 |
| VP 75 | 60 | 66 | 108 | HW4M132-D20 | 1800*800*1200 | 825 | VMP 202 | 2900*1100*1450 | 1675 |
| VP100 | 80 | 88 | 144 | HW6M165-D20 | 2300*800*1300 | 1012 | VMP 203 | 3500*1300*1650 | 2062 |
| VP120 | 96 | 105 | 173 | HW6M198-D20 | 2300*800*1300 | 1020 | VMP 203 | 3500*1300*1650 | 2070 |
| VP150 | 120 | 132 | 217 | HW6M231-D20 | 2300*800*1300 | 1660 | VMP 203 | 3500*1300*1650 | 2710 |
| VP200 | 160 | 180 | 289 | HW6M312-D20 | 3000*350*1800 | 1980 | VMP 205 | 4500*1500*2300 | 3680 |
| VP250 | 200 | 220 | 361 | HW6M408-D20 | 3000*350*1900 | 1980 | VMP 205 | 4500*1500*2 300 | 3680 |
| VP300 | 240 | 264 | 433 | HW6M448-D20 | 3050*950*1800 | 2260 | CAP 204 | 4250*1400*1950 | 3760 |
| VP375 | 300 | 330 | 541 | HW6E460-D20 | 3050*950*1800 | 2260 | VMP 204 | 4250*1400*1950 | 3760 |
| VP438 | 350 | 385 | 631 | HW6E520-D20 | 3050*950*1800 | 2290 | VMP 204 | 4250*1400*1950 | 3790 |
| VP500 | 400 | 440 | 722 | HW6E560-D20 | 3200*1300*1750 | 2800 | VMP 205 | 4500*1500*2300 | 4500 |
| VP563 | 450 | 500 | 812 | HW12G748-D20 | 3500*1600*2000 | 3850 | VMP 206 | 4650*1700*2450 | 5700 |
| VP625 | 500 | 550 | 902 | HW12G830-D20 | 3500*1600*2000 | 3900 | VMP 206 | 4650*1700*2450 | 5750 |
| VP688 | 550 | 600 | 992 | HW12G900-D20 | 3500*1600*2000 | 4000 | VMP 206 | 4650*1700*2450 | 5850 |
| VP725 | 580 | 650 | 1046 | HW12G990-D20 | 3450*1550*2000 | 4200 | VMP 206 | 4650*1700*2450 | 6050 |
| VP750 | 600 | 660 | 1083 | HW12G1060-D20 | 3450*1550*2000 | 4400 | VMP 206 | 4650*1700*2450 | 6250 |
| VP800 | 640 | 704 | 1155 | HW12KG1060-D20 | 3850*1800+2100 | 4400 | 20 HQ | 6058*2438*2591 | 8000 |
| VP850 | 680 | 750 | 1227 | HW12G1120-D20 | 3850*1800+2100 | 4500 | 20 HQ | 6058*2438*2591 | 8100 |
| VP938 | 750 | 820 | 1353 | HW12G1210-D20 | 4300*2000*2400 | 5100 | 20 HQ | 6058*2438*2591 | 8700 |
| VP975 | 780 | 860 | 1407 | HW12G1310-D20 | 4300*2000*2400 | 5200 | 20 HQ | 6058*2438*2591 | 8800 |
| YP1025 | 820 | 900 | 1480 | HW12G1500-D20 | 4300*2000*2400 | 5300 | 20 HQ | 6058*2438*2591 | 8900 |
| VP1125 | 900 | 1000 | 1624 | HW12G1600-D20 | 4300+2000+2400 | 5500 | 20 HQ | 6058*2438*2591 | 9100 |
| VP1250 | 1000 | 1100 | 1804 | HW12G1650-D20 | 4300+2000+2400 | 5700 | 20 HQ | 6058*2438*2591 | 9300 |
| YP1375 | 1100 | 1210 | 1985 | HW12T1650-D20 | 4950*2250+2 500 | 7500 | 20 HQ | 6058*2438*2591 | 11100 |
| VP1500 | 1200 | 1320 | 2165 | HW20PT1960-D30 | 5200*2210*2800 | 10000 | Non-standard | 12000*3000*3200 | 17000 |
| YP1688 | 1350 | 1485 | 2436 | HW10QT2270-D30 | 5500*2210*2800 | 12500 | Non-standard | 12000*3000*3200 | 19500 |
| VP1875 | 1500 | 1650 | 2706 | HW10QT2450-D30 | 5500*2210*2800 | 12500 | Non-standard | 12000*3000*3200 | 19500 |
| VP2000 | 1600 | 1760 | 2887 | HW12QT2670-D30 | 5900*2210*2800 | 14000 | Non-standard | 12000*3000*3200 | 21000 |
| VP2250 | 1800 | 2000 | 3248 | HW12QT3000-D30 | 5900*2210*2800 | 14000 | Non-standard | 12000*3000*3200 | 21000 |
| VP2500 | 2000 | 2200 | 3609 | HW16QT3330-D30 | 6500*2800*3000 | 18000 | / | / | / |
| VP2750 | 2200 | 2400 | 3969 | HW16QT3630-D30 | 6500*2800*3000 | 18000 | / | / | / |
| VP3000 | 2400 | 2640 | 4330 | HW16QT4000-D30 | 6800*3470*3850 | 20000 | / | / | / |
| VP3125 | 2500 | 2750 | 4511 | HW20QT4150-D30 | 7000*3470*3850 | 20800 | / | / | / |
| YP3250 | 2600 | 2860 | 4691 | HW20QT4350-D30 | 7000*3470*3850 | 20800 | / | / | / |
| VP3375 | 2700 | 2970 | 4872 | HW20QT4530-D30 | 7000*3470*3850 | 20800 | / | / | / |
| VP3750 | 3000 | 3300 | 5413 | HW20QT4700-D30 | 7000*3470*3850 | 21000 | / | / | / |
| High voltage unit -10500V50HZ power factor 0.8 | |||||||||
| VP1500-G10 | 1200 | 1320 | 82 | HW20PT1960-D30 | 5450*2210*2800 | 12000 | / | / | / |
| YP1688-G10 | 1350 | 1485 | 93 | HW10QT2270-D30 | 6000*2210*2800 | 14200 | / | / | / |
| VP1875-G10 | 1500 | 1650 | 103 | HW10QT2450-D30 | 6100*2210*2800 | 14500 | / | / | / |
| VF2000-G10 | 1600 | 1760 | 110 | HW12QT2670-D30 | 6500*2210*2800 | 16000 | / | / | / |
| VP2250-G10 | 1800 | 2000 | 124 | HW12QT3000-D30 | 6500*2210*2800 | 16000 | / | / | / |
| VP2500-G10 | 2000 | 2200 | 137 | HW16QT3330-D30 | 7200*2800*3000 | 20000 | / | / | / |
| VP2750-G10 | 2200 | 2400 | 151 | HW16QT3630-D30 | 7200*2800*3000 | 21000 | / | / | / |
| VP3000-G10 | 2400 | 2640 | 165 | HW16QT4000-D30 | 7500*3470*3850 | 22000 | / | / | / |
| YP3125-G10 | 2500 | 2750 | 172 | HW20QT4150-D30 | 7700*3470*3850 | 23800 | / | / | / |
| VP3250-G10 | 2600 | 2860 | 179 | HW20QT4350-D30 | 7800*3470*3850 | 24000 | / | / | / |
| VP3375-G10 | 2700 | 2970 | 186 | HW20QT4530-D30 | 7800*3470*3850 | 24000 | / | / | / |
| VP3750-G10 | 3000 | 3300 | 206 | HW20QT4700-D30 | 7800*3470*3850 | 26000 | / | / | / |
