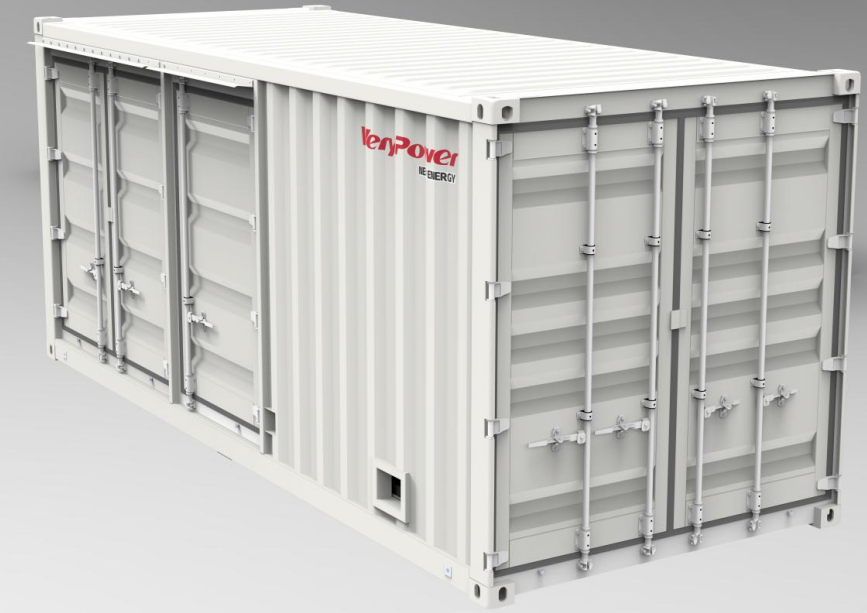

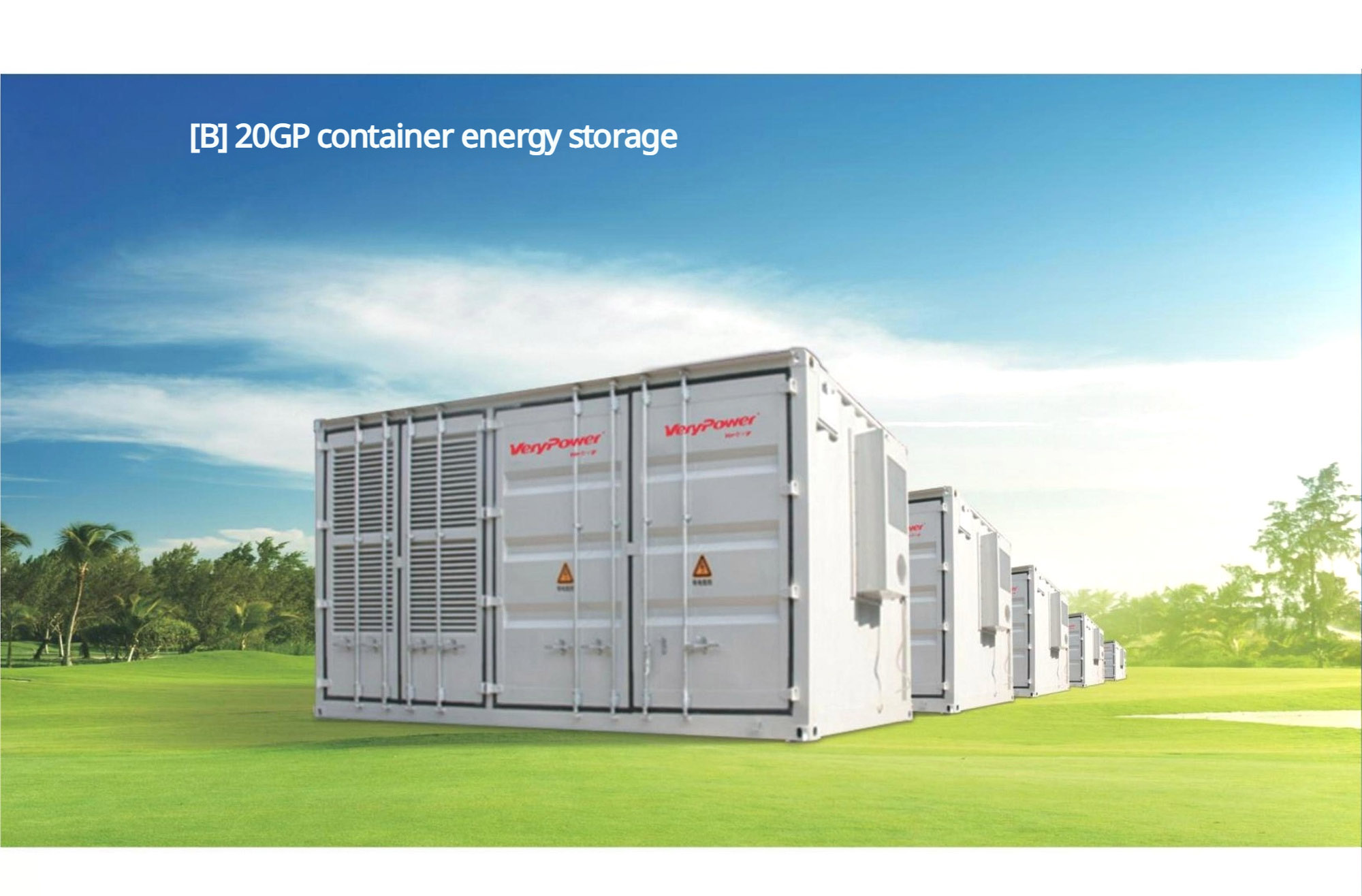

| Container Battery Storage System-20GP 500kw/1.29MWh | |||
| project | parameter | ||
| Battery System | Battery Type | Lithium iron phosphate battery | |
| Battery system grouping mode | 6P240S | ||
| Battery system rated voltage M) | 768 | ||
| Total capacity of battery system (kWh) | 1290 | ||
| Battery system voltage range (V) | 672-852 | ||
| PCS power(KW) | 2x500 | ||
| AC side output voltage (V) | 400 | ||
| Battery system cooling method | Air conditioning/forced air cooling Liquid cooling | ||
| Battery system protection level | IP 54 | ||
| Battery system dimensions (mm) | 6096x2438x2891mm | ||
| Operating temperature range | Charging 0~55℃ Discharging -20~60℃ | ||
| Note: Product innovation, performance improvement, technical parameters are for reference only | |||
