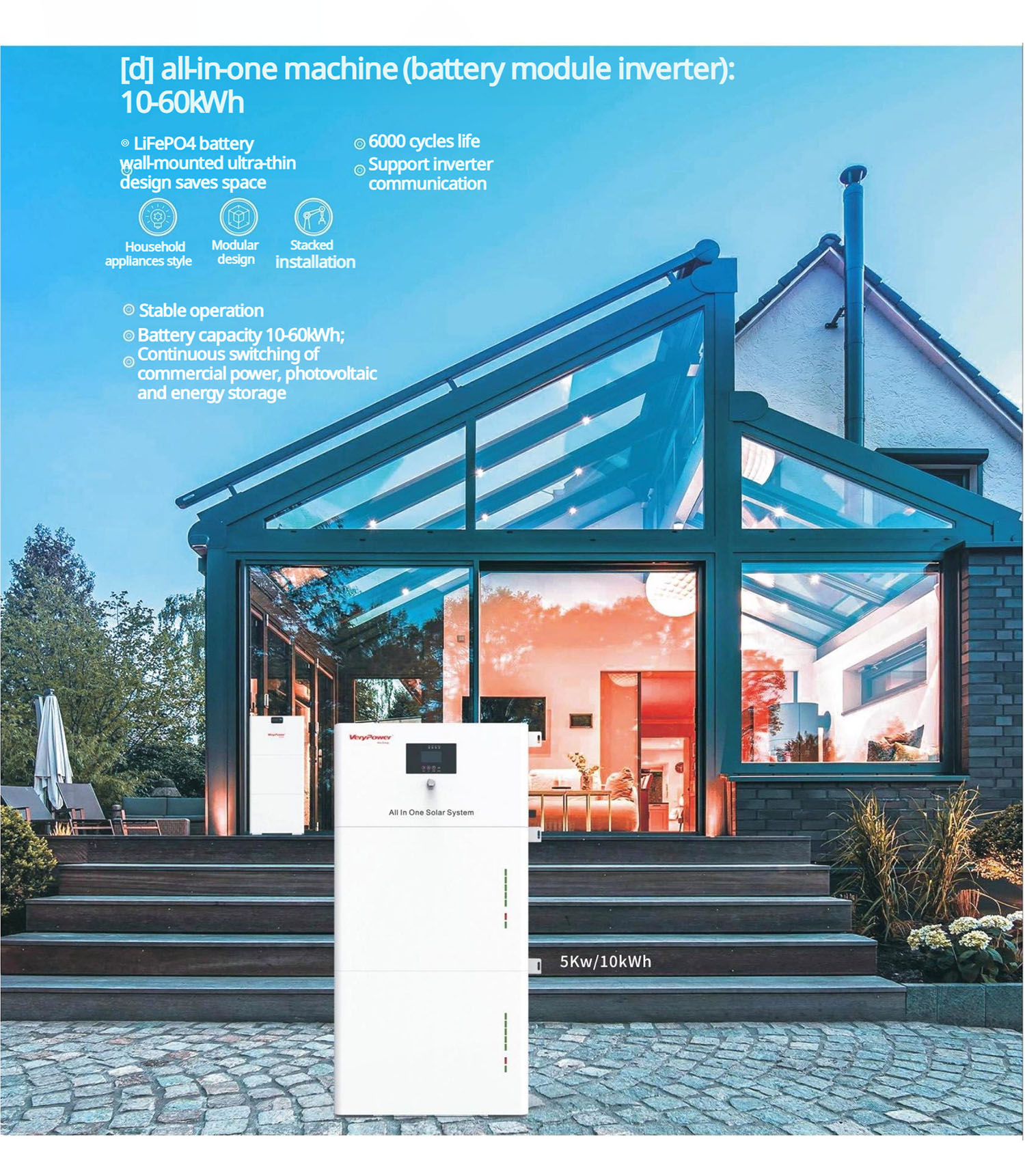

All-in-one machine (battery module + inverter)

It is a new generation of product in the field of energy storage. It integrates the inverter and battery in one device. It is easy to use and plug-and-play, which can greatly save installation time. The emergence of the integrated energy storage machine solves the problem of complex installation and high cost of traditional energy storage systems, which is very convenient.

  • Product Introduction
  • message

All-in-one product parameters
modelVP3KL1-BVP5KL1-B
Rated Power3KVA/3KW5KVA/5K
enter
Voltage230VAC
Optional voltage range170-280 VAC (for personal computers); 90-280 VAC (for household appliances)
Frequency range50Hz/60 Hz (Adaptive)
Output
AC voltage regulation (battery mode)230VAC±5%
Surge Power6000VA                             10000VA
Efficiency (peak)Up to 93.5%
Transfer time10ms (for personal computers); 20ms (for home appliances)
WaveformPure sine wave
Battery
Battery voltage24VDC48 VDO
Float charge voltage27VDC54VDC
Overcharge protection voltage33 VDC63 VDC
Photovoltaic charging & AC charging
Pv maximum input voltage150VDC500VDC
PV maximum input power2500W5000W
MPPT operating voltage range40~150 VDC120~450VDC.
Maximum photovoltaic charging current100A100A
Maximum AC charging current80A80A
Maximum charging current100 A100 A
Physical parameters
Dimensions, L x W x H120*330*480(mm)
Net weight(kg)9 10
Communication interfaceUSB/RS232
Environmental conditions
humidity5% to 95% relative humidity (non-condensing)
Operating temperature-10°C to 50°C
Storage temperature-15℃ to 60℃

The company reserves the right to modify specifications at any time without prior notice.
