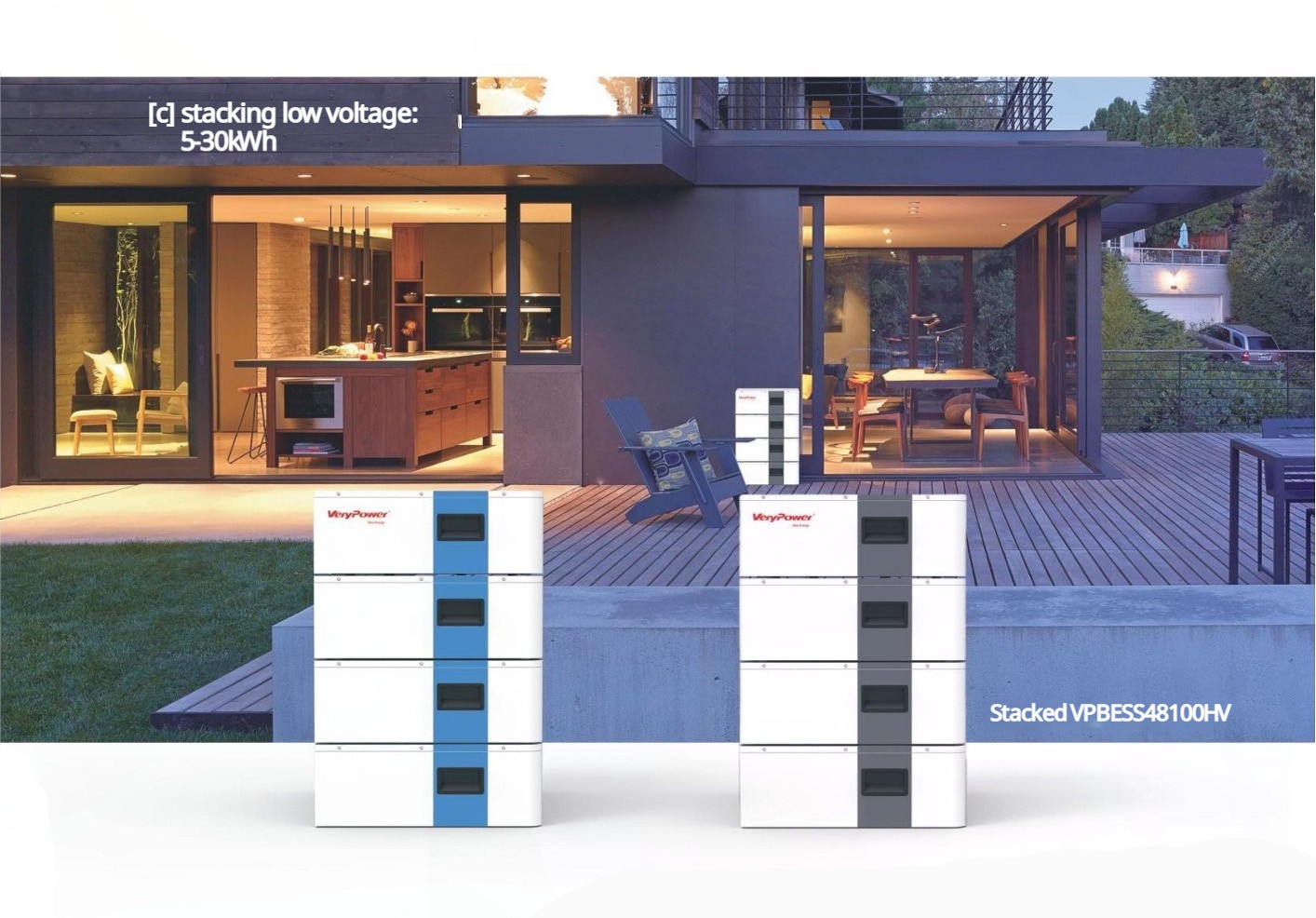

Low pressure stacking

It is a household energy storage battery composed of low-voltage batteries. It can store the electricity converted from renewable energy sources such as solar energy and wind energy for household electricity use. It is suitable for small households and low power output needs.

  • Product Introduction
  • message

低压堆叠英文

Product Parameters
modelVPBESS48100S-A
Cell TypeLiFePO4 Lithium Iron Phosphate
Battery connection method (S series, P parallel)16S1P
Rated voltage51.2V
Rated capacity100Ah/layer
Dimensions (mm)610*545*240
weight50kg
Support parallel operationWith parallel port
Charging methodCC/CP/VP
Charging Current0.2C(standard)
Maximum charging rateMax0.5C @25℃
Charge termination voltage58.4V/CELL
MethodsCC/CP/VP
Discharge current0.5C
Maximum discharge rateMax0.6C @25℃
Discharge end voltage44.8V
Communication interfaceRS485/RS232/CAN
Charging operating temperatureCharging:0~+50℃
Discharge operating temperatureDischarge:-20~+55℃
Warranty3 years
