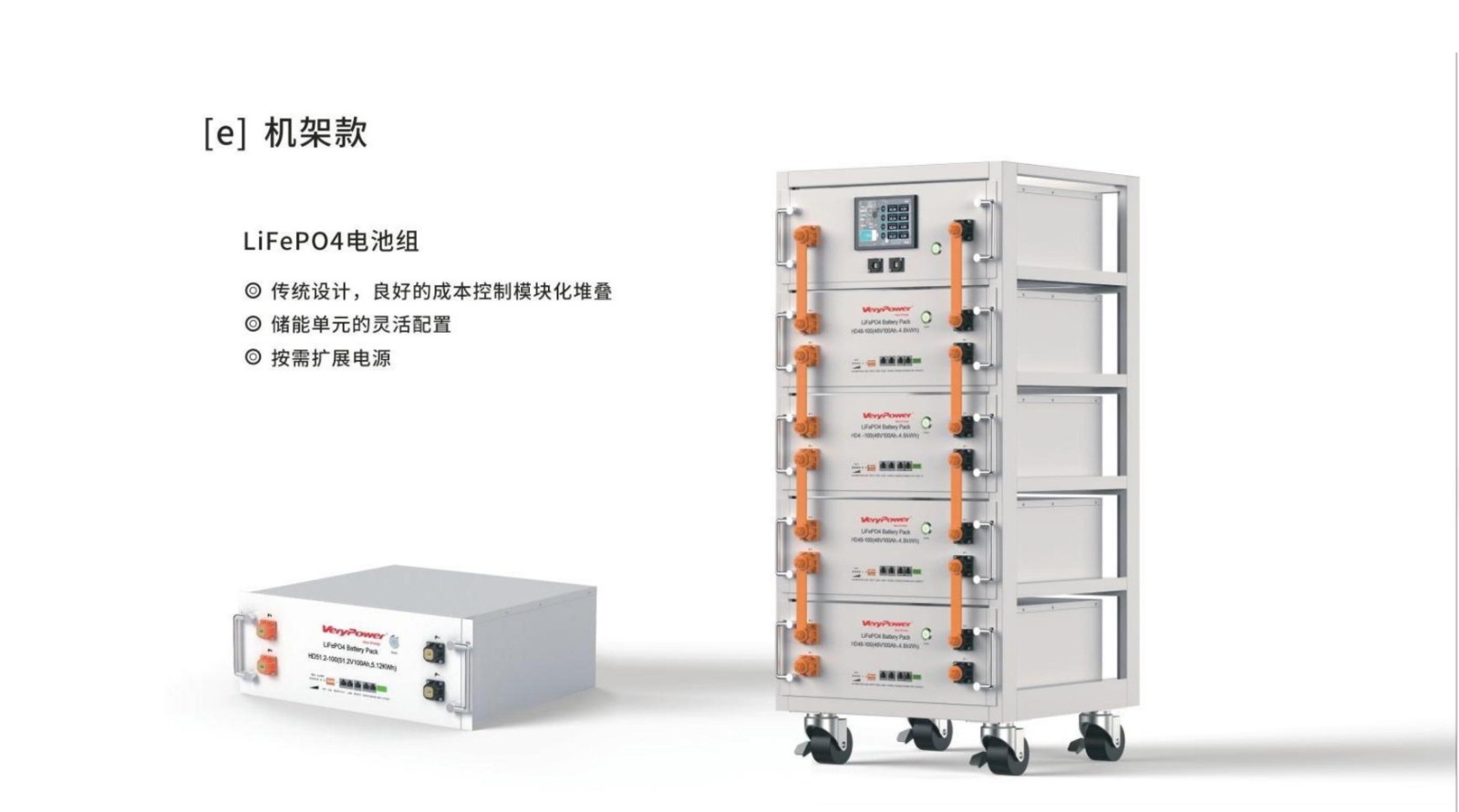

Rack Type

Rack-mounted energy storage is based on modular design and is installed and managed through standard racks. The lithium batteries used have a high energy density, allowing the system to provide a large amount of power in a limited space, which is particularly suitable for occasions with high requirements for space utilization.

  • Product Introduction
  • message

机架款英文说明


Product Parameters
modelVPRM48100HVVPRM48120HVVPRM48150HVVPRM48200HV
Rated voltage(Vdc)51.2 51.2 51.2 51.2
Rated capacity(AH)100 120 150 200
Power(kWH)5.12 6.144 7.68 10.24
Cycle life≥6000 cycles to 80%DOD
Monthly self-discharge≤2%
Charging efficiency100%at 0.2C
Discharge efficiency96-99%at 1C
Charging voltage58.4
Charging current(A)20 24 30 40
Continuous current (A)100 120 120 120
Discharge cut-off voltage44.8
IP protection ratingIP21
Battery TypeLifePO4 Lithium Iron Phosphate
Net size L*W*H(mm)490*440(482)*191490*440(482)*191490*442(484)*250490*442*290
Packing size L*W*H(mm)585*515*345585*515*345575*515*325600*600*325
Net weight(KG)67.8 72 79 79
Gross Weight(KG)72 76 82 83.2
Communication interface (optional)CANBus/RS485/RS232

The power and capacity are expandable and can be customized. Please contact sales for details.
